Air Cooled Exchanger

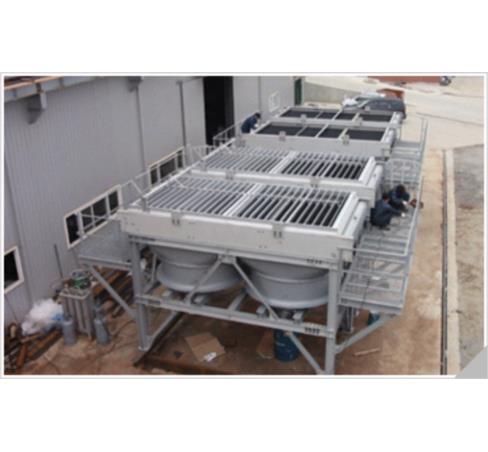

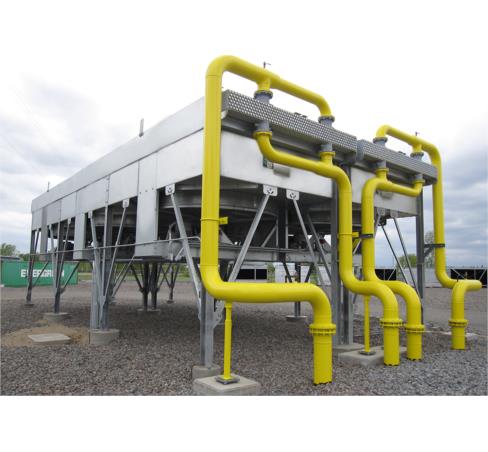

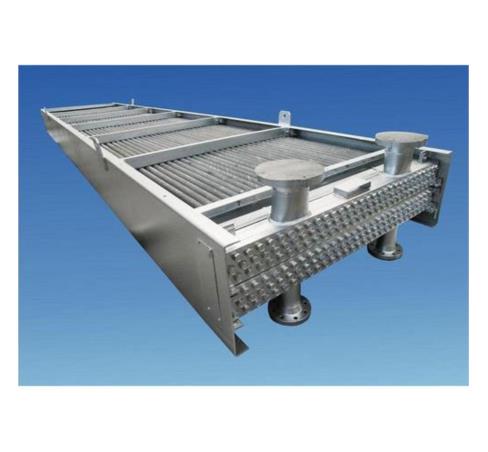

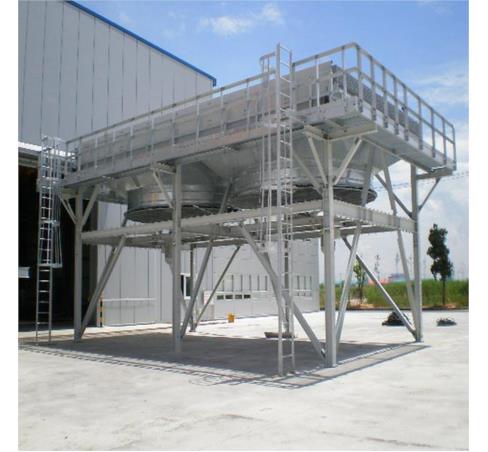

Air Cooled Heat Exchanger’s also known as Fin Fan heat exchangers are typically used in applications where water is not available or the desired process outlet temperature can be achieved given the maximum ambient temperatures.  Also, air cooled equipment can be a more simple solution against water cooled because in water cooled systems typically there is also a need for more pumps, piping, central chiller or cooling towers increasing the operating cost and maintenance of the system.

Air Cooled Heat Exchangers are used in a wide variety of applications. They can be used as lube oil coolers, water and glycol coolers, inter/aftercoolers on compressors, jacket water cooler, engine radiators, belt guard after-coolers, hydraulic oil coolers (both stationary and mobile), closed loop cooling systems, and condensers.

With our vast knowledge and expertise in a wide range of industries and markets we can help put you in the most cost effective and efficient option available.

All units are pneumatically or hydraulically tested, and when required we offer ASME “UM”, “U”, or API compliance.

Fan Driven units are shipped with electric motors suitable for outdoor applications.  Alternate motors are available upon request, i.e. hydraulic motors and air motors.

We can provide equipment with copper, carbon steel, or stainless construction including the headers, tubes and fins.
